How I Make Custom Wheel Spacers

A step-by-step look at measuring and machining one-off wheel spacers for a 1977 Shovelhead customer build.

By Hawg SupplyTech / How-To

This one's all about wheel spacers. We're building this 1977 Shovelhead for a customer, and we just got these wheels and tires set up. Now it's time to make our wheel spacers so we can mount the fender and bend the handlebars after this. Store-bought spacers never land exactly where you need them on a custom build, so I machine my own — here's how I do it, start to finish.

1977 Shovelhead chopper build on the lift with fresh wheels and tires mounted

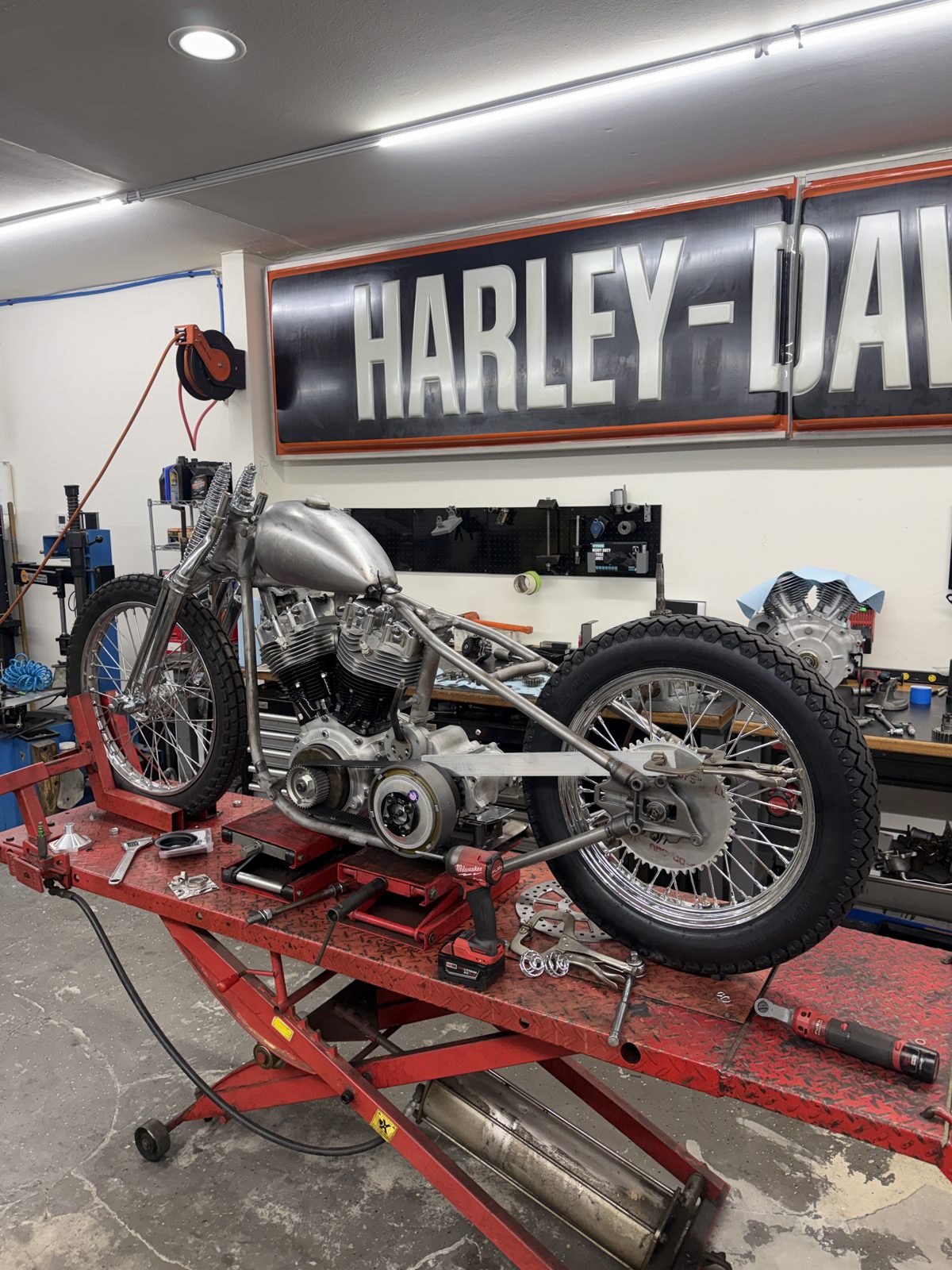

The '77 Shovelhead on the lift. Wheels and tires are on — spacers are next so we can get the fender mounted and move on to the bars.

Step 1. Align the wheel sprocket with the transmission sprocket

Before I measure anything, the wheel has to be straight and exactly where it needs to be between the axle plates. I like to use a piece of flat bar laid across the rear sprocket to line it up with the transmission sprocket. When the flat bar sits flush against both, your chain line is dead straight and the wheel is centered where it's supposed to live.

Using a piece of aluminum flat bar to align the rear wheel sprocket with the transmission sprocket
A straight piece of flat bar across the trans sprocket and wheel sprocket tells you the truth — no guessing on chain alignment.

Step 2. Grab a telescoping gauge

I like to use these little telescoping gauges to measure the width for my wheel spacers. They're super cheap, and they work great for this application. You compress the gauge, slip it into the gap, and let it expand to fill the space — then lock it down and it holds the exact dimension.

Telescoping gauge used to measure wheel spacer width
The humble telescoping gauge. A few bucks well spent — perfect for tight spots a ruler can't reach.

Step 3. Measure the gap

Get in there and measure the gap between the bearing and the axle plate. As you can see, this gap is pretty small, so I wouldn't be able to measure it with a tape measure or a ruler that easily. Obviously anything's possible, but this is how I like to do it — the gauge expands to fill the space and gives you a solid, repeatable measurement.

Measuring the spacer gap at the rear axle with a telescoping gauge
Slip the gauge into the gap and let it do the work. This is the exact width the finished spacer needs to be.

Step 4. Record your measurement

Pull the locked gauge out and measure across it with calipers. This one came out to 0.5545". Write it down — that number is your spacer length, and you don't want to be second-guessing it once you're standing at the lathe.

Measuring the telescoping gauge with digital calipers reading 0.5545 inches
Calipers across the locked gauge: 0.5545". That's the number the lathe needs to hit.

Step 5. Repeat for the right side spacer

Same process on the other side of the wheel. I like to go through and get all my measurements up front — that way I can just go to the lathe and start making spacers without running back and forth to the bike.

Measuring the right side spacer gap at the rear hub with a telescoping gauge
Right side gets the same treatment. Measure everything first, machine second.

Step 6. Start turning — roughing pass

I'm starting with a 2" outer diameter piece of 6061 aluminum. I wanted this spacer to have a big shoulder on it that covers the bearing area and butts right up to the sprocket, so there's no gap in between — it all looks like one seamless piece. From there, I rough it down toward my finished dimensions.

Roughing pass on 2 inch OD 6061 aluminum round stock in the lathe
2" OD 6061 in the chuck. Roughing the profile in — the big shoulder will blend the bearing area right into the sprocket.

Step 7. Finish pass with a circular cutter

For the contour on the shoulder, I like to use a circular cutter. Super easy — you just run it into the work and it leaves a nice, clean radius. One smooth finish pass and the profile is done.

Finish pass with a circular form cutter creating the contoured shoulder on the aluminum spacer
The circular cutter rolls that contour in one pass. Clean radius, no hand-blending needed.

Step 8. The finished left side spacer

Here's the finished left side spacer installed. The shoulder flows off the sprocket and covers the bearing area just like I wanted — looks pretty good in there. No washers stacked up, no gaps, just one clean piece that fits exactly.

Finished custom aluminum wheel spacer installed on the rear axle, blending into the sprocket
Finished left side spacer in place — the contour makes the spacer, sprocket, and hub read as one piece.

Step 9. Repeat for the front wheel

I then repeated the same process for the front wheel on the springer — align, measure, machine. These front spacers run longer, and since I had some room to play with, I added a few grooves for a little extra flare.

Front wheel mounted in the springer front end awaiting custom spacers
Front wheel in the springer. Same measuring routine as the rear.

Step 10. The finished front spacers

Here's a close-up of the finished front spacers. The grooves dress up all that extra length between the hub and the springer leg, and the fit is dead-on against the bearing. Little details like this are what separate a custom build from a bolt-together bike.

Close-up of finished grooved aluminum front wheel spacers on the springer front end
Grooved front spacers — functional, exact, and a little extra flare because we could.

Why machine your own spacers?

Universal spacers get you close — custom spacers get you exact. Machining your own means a perfect chain line, no stacked washers, full support against the bearing, and a finished look where the spacer, hub, and sprocket flow together like one piece. On a ground-up build, close isn't good enough.


That's a wrap

With the spacers done, the wheels are locked in exactly where they belong — next up on this '77 Shovelhead is mounting the fender and bending up a set of bars. Stick around for the next installment.

Questions about the process, or want us to build something for you? Reach out through hawgsupply.com.
